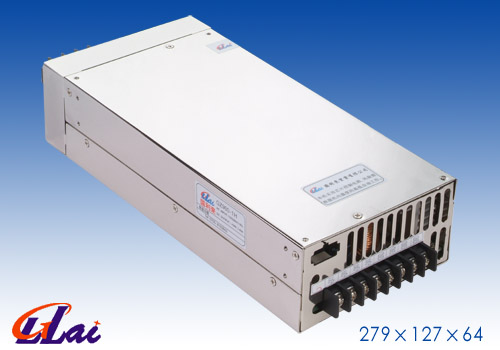

400W~600W series the electric high frequently switch piezoelectricity power supply




Pressure Input:
Input frequency:
Short circuit protection:
Overload protection:
Withstand voltage:
Size:
Operating temp:
InputAC 110Vswitch220V
47~63 Hz
Long-term/cut / Safe
110%~150%Power rating
Input to Output./ input to earth 1.5KV 279×127×64(mm)Fan Cold
0~40℃@100%,-10℃@80%
50℃@50%


Mode

Output

R&N

Efficiency

short circuit power

GLB400--IB

+5V/80A

50mV

80



GLB500—ID

+12V/41A

65mV

82



GLB600—IH

+24V/25A

70mV

86



GLB600—IK

+36V/16.5A

85mV

87



GLB600—IL

+48V/12.5A

90mV

89
